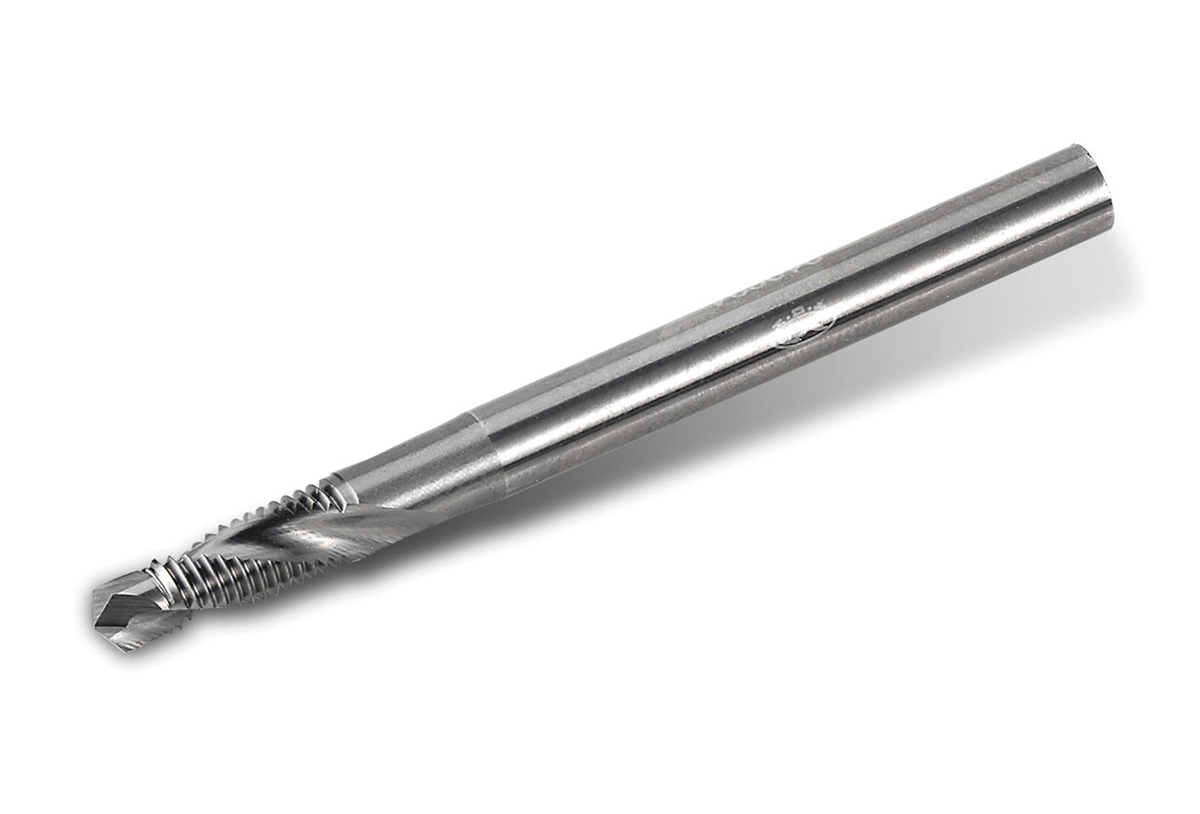

Drill taps
| Size | Drill Diameter mm |
Drill Length mm |
Thread Length mm |
Shank Diameter mm |
Overall Length mm |
Welded(W)/ Tungsten(T) |
| M3x0.5 | 2.5 | 5 | 12 | 4.0 | 50 | T |
| M4x0.7 | 3.3 | 7 | 13 | 5.0 | 50 | T |
| M5x0.8 | 4.2 | 10 | 14 | 6.0 | 50 | T |
| M6x1.0 | 5.0 | 10 | 14 | 8.0 | 60 | T |
| M8x1.25 | 6.8 | 15 | 16 | 10.0 | 75 | T |
| M10x1.5 | 8.5 | 15 | 20 | 12.0 | 75 | T |
| M12x1.75 | 10.3 | 20 | 20 | 14.0 | 100 | T |
| 1/8-W40 | 2.7 | 5 | 12 | 4.0 | 50 | T |
| 5/32-W32 | 3.3 | 7 | 12 | 5.0 | 50 | T |
| 3/16-W24 | 3.6 | 10 | 13 | 6.0 | 50 | T |
| 1/4-W20 | 5.0 | 10 | 14 | 8.0 | 60 | T |
| 5/16-W18 | 6.6 | 15 | 16 | 10.0 | 75 | T |
| 3/8-W16 | 8.0 | 15 | 20 | 12.0 | 75 | T |
| 1/2-W12 | 10.7 | 20 | 20 | 14.0 | 100 | T |
